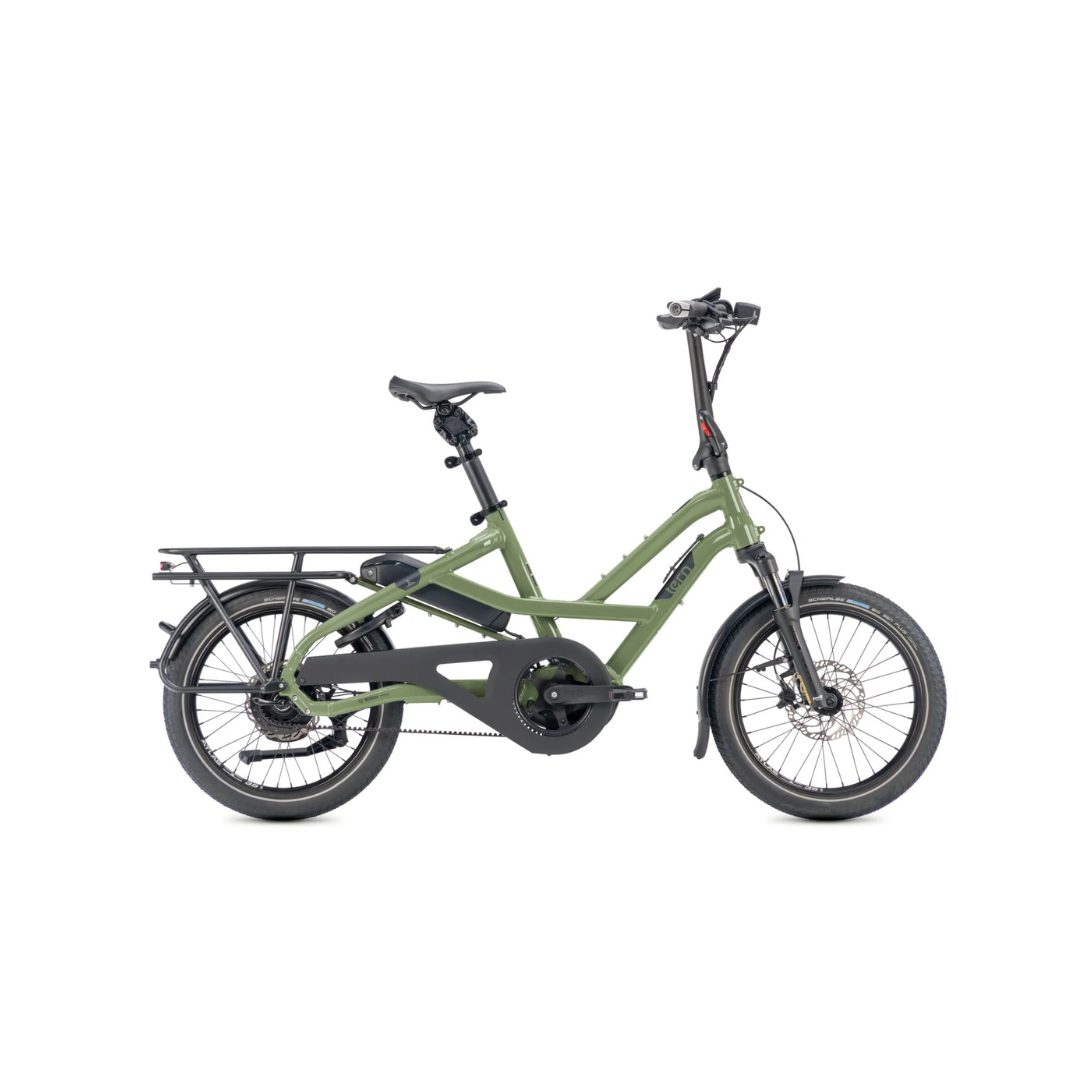

Name: Tern HSD S9i Sport
Brand: Tern
Price: 7499.0 USD
Availability: InStock

$7,499.00

Shipping calculated at checkout.

Color

Gloss Thomas

Gloss Basalt

The HSD S9i Sport is the flagship, and it's loaded. It combines Bosch's 90 Nm Performance Sport motor and 28-mph Class 3 assist with the 3x3 NINE internally geared hub: nine speeds, a huge 554% range, and Bosch eShift, so you can shift under load or at a complete stop. All of it runs through a silent Gates carbon belt. The Kiox 300 display and Bosch ConnectModule add GPS tracking and an eBike alarm, while a Cane Creek suspension seatpost and a burlier 34 mm Suntour fork make loaded rides genuinely plush. Magura MT4 brakes, 419 lb capacity, integrated lights, and the same 5-second fold round it out. This is the HSD with everything.

Book a test ride

Bosch Performance Sport motor delivers 90 Nm of torque and up to 600% pedal assist
Class 3 speed with pedal assist up to 28 mph to keep pace with traffic
3x3 NINE 9-speed internally geared hub with a best-in-class 554% range, plus Bosch eShift for shifting under load or at a stop
Bosch Smart System with ConnectModule adds GPS tracking and an eBike Alarm, controlled from the Kiox 300 display and LED Remote
Silent, virtually maintenance-free Gates Carbon Drive belt
Cane Creek suspension seatpost and a 34 mm Suntour fork smooth out rough pavement
Magura MT4 hydraulic disc brakes with 180 mm rotors
Hauls up to 419 lb gross vehicle weight, with a 176 lb rear rack capacity
Folds in 5 seconds and adjusts without tools to fit riders 5'0" - 6'9"

GEARS: 9
GEAR TYPE: Hub (3x3 NINE, 554% range, with Bosch eShift)
WEIGHT: 63.9 lb
FRAME SIZES: One size
SUGGESTED RIDER HEIGHT: 5'0" - 6'9"
MAX GROSS VEHICLE WEIGHT: 419 lb
MAX RIDER WEIGHT: 287 lb
FRAME: Tern HSD, 6061 aluminum, patented design, EN 17860 certified
FORK: Suntour custom for Tern, 34 mm stanchions, thru-axle
SEATPOST: Tern VLT with Cane Creek suspension
SADDLE: Tern by Velo
BRAKES: Magura MT4, hydraulic disc, 180 mm rotors
SHIFTER(S): 3x3 CMD wireless e-shifter with Bosch eShift
CHAIN: Gates Carbon Drive CDX belt
MOTOR: Bosch Performance Sport, 600% assist, 90 Nm
MAX SPEED: 28 mph
E-BIKE CLASSIFICATION: Class 3
BATTERY: Bosch PowerPack 545
DISPLAY: Bosch Kiox 300 with LED Remote
RANGE: 35-64 mi
BELL: Yes, Pitch Plus brass
KICKSTAND: Yes, Ursus rear mount
FRONT LIGHT: Yes, Herrmans, 240 lumens
REAR LIGHT: Yes, Herrmans LED
FENDERS: Yes, aluminum with stainless hardware
RACK(S): Atlas H rack, 6-point mounting, max load 176 lb
FRAME LOCK: Yes, AXA
SECURITY: Keyed-alike with Bosch battery; Bosch ConnectModule with GPS tracking and eBike Alarm
FOLDED SIZE: 65.4 x 16.5 x 34.3 in
FOLDING TIME: 5 seconds
