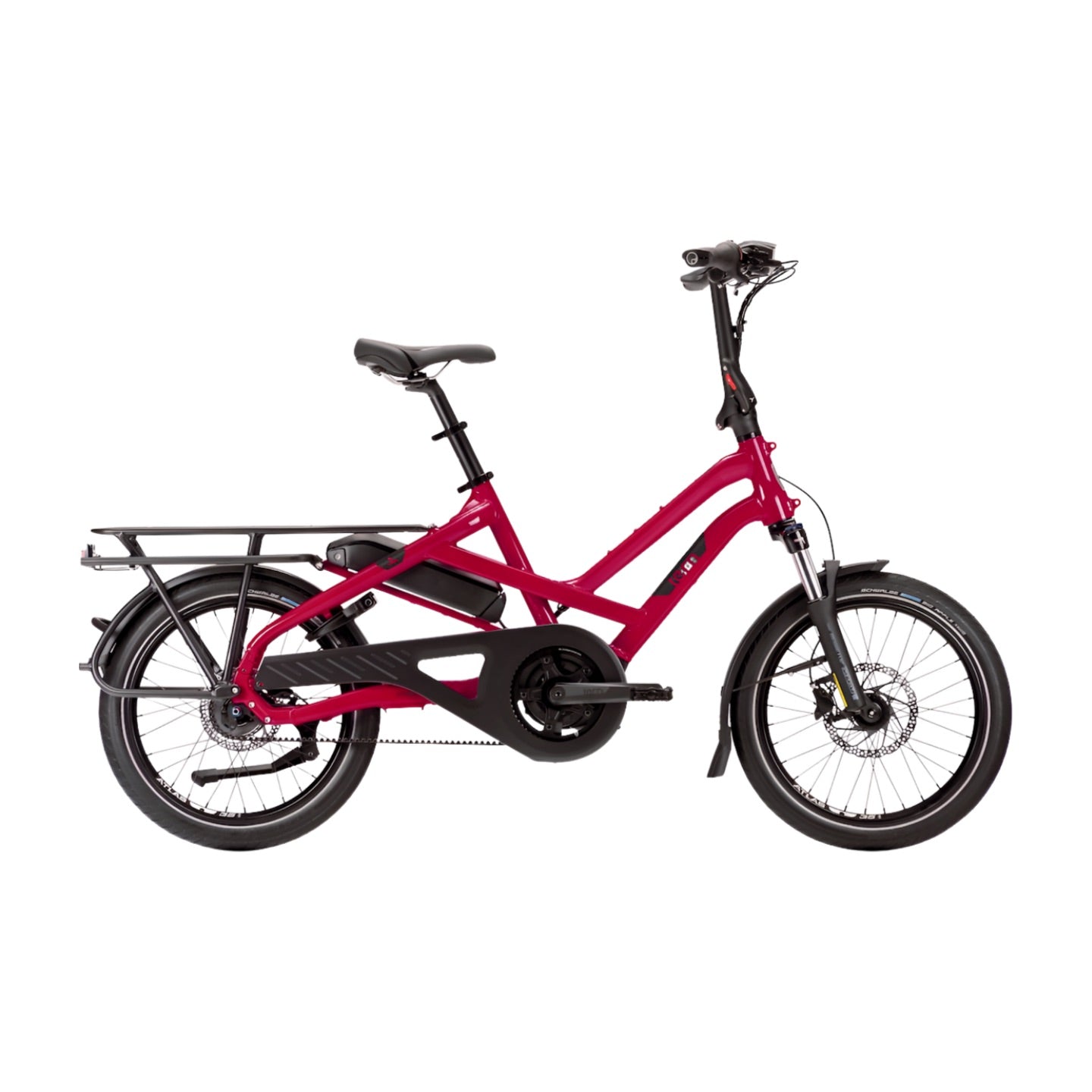

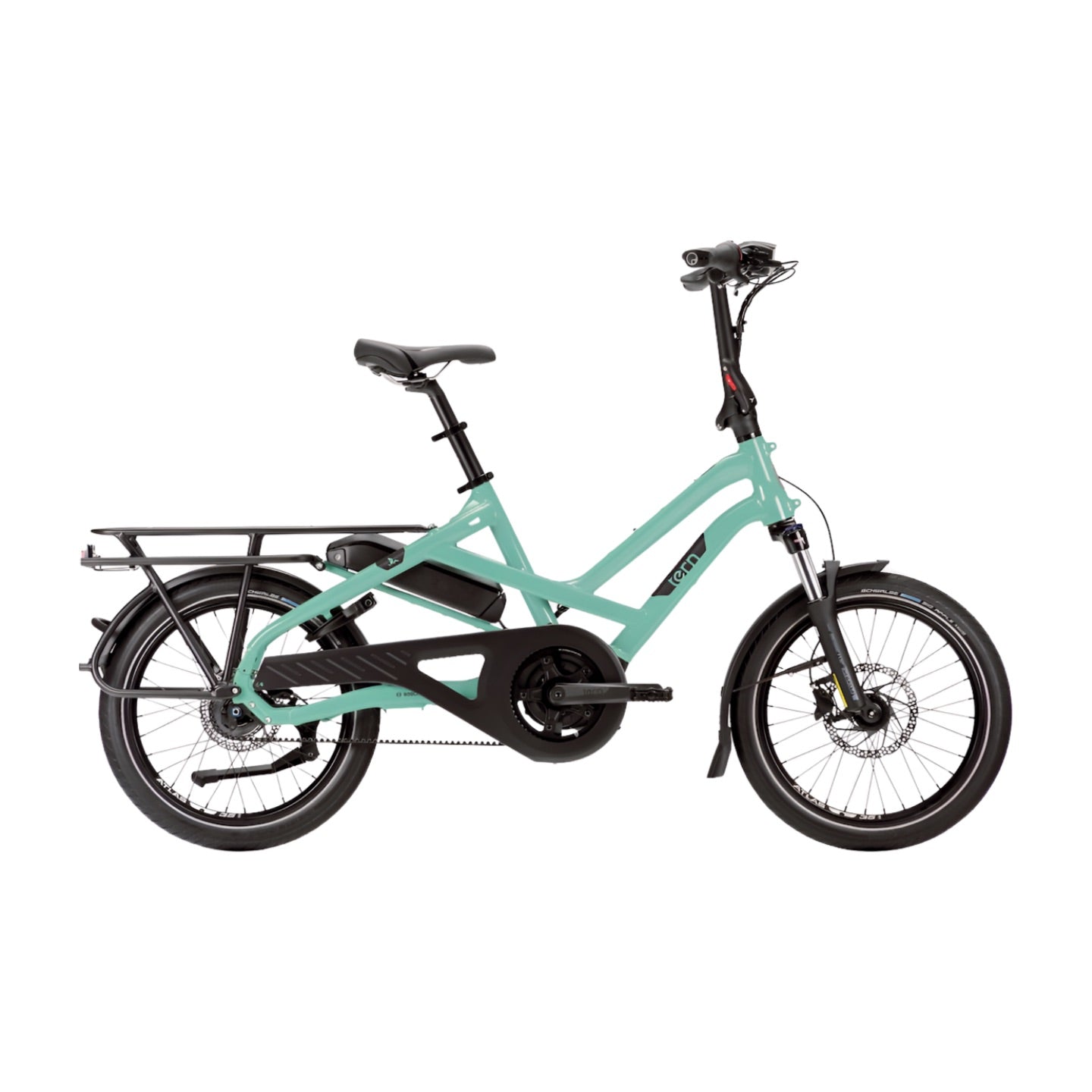

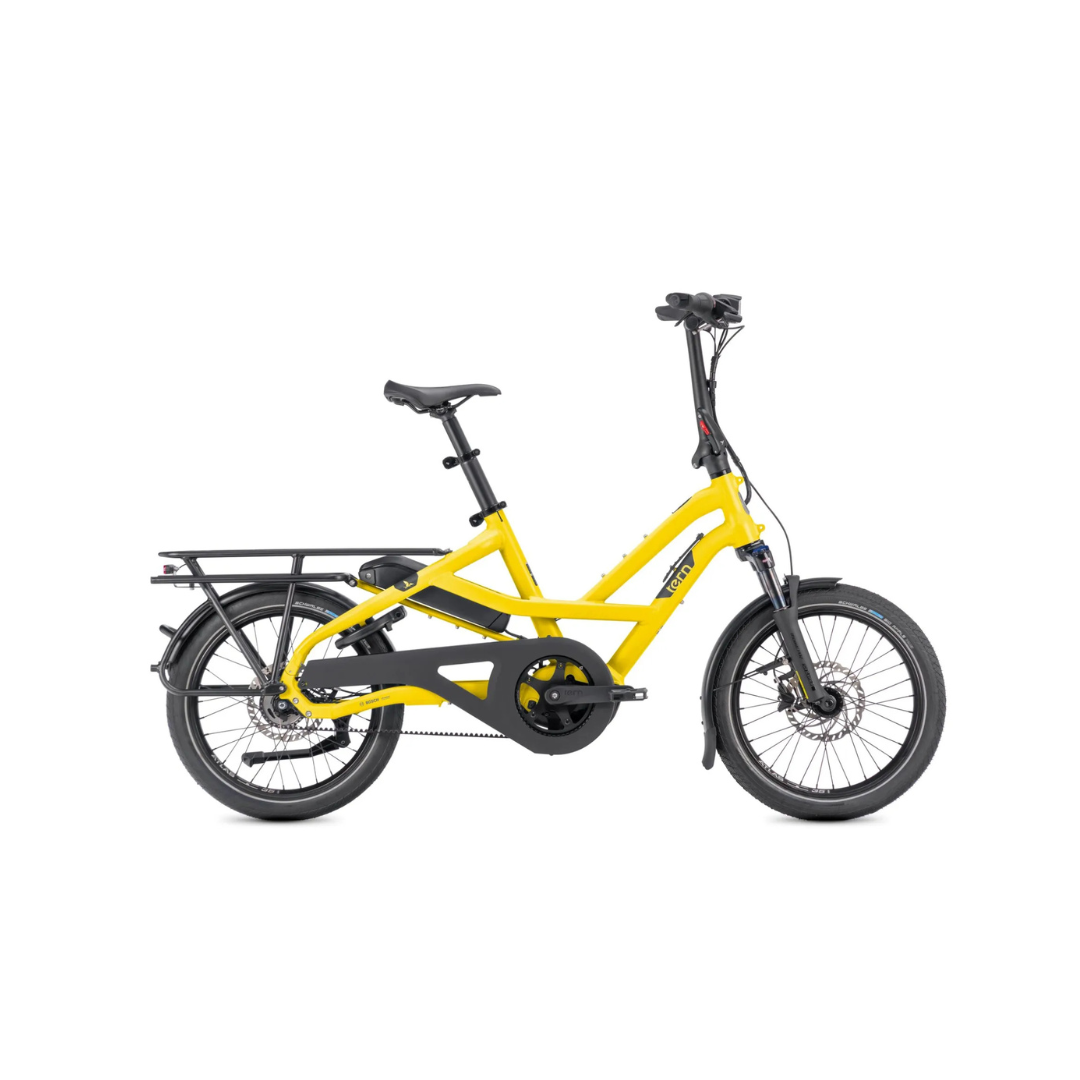

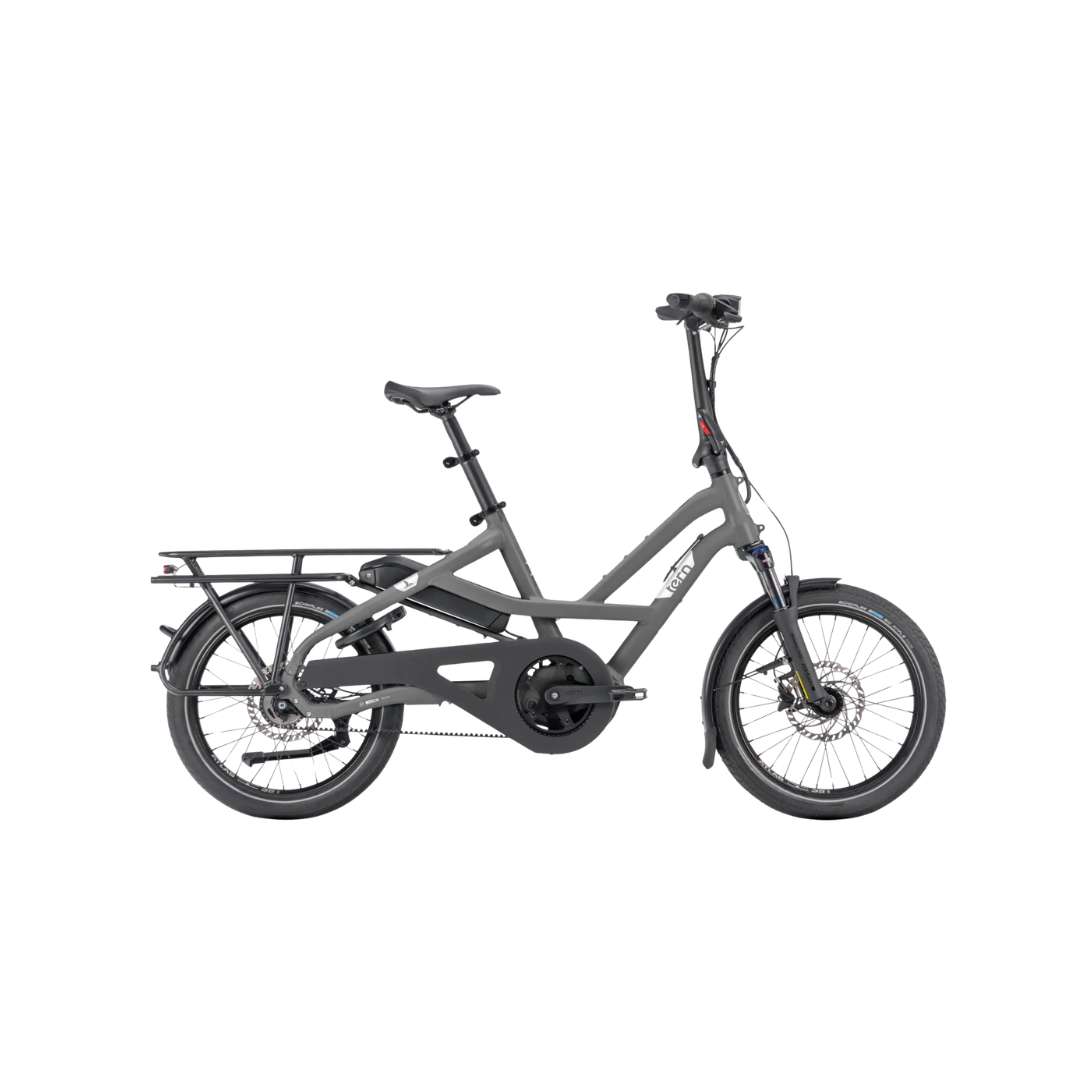

Tern HSD P5i
Tern HSD P5i

Tern HSD P5i

Regular price$5,499.00
/
Shipping calculated at checkout.

Color

The HSD P5i is the entry into the HSD family and it's a treat! Bosch's Performance Line motor provides 75 Nm and up to 340% assist, which is plenty to get you and a passenger up any hill in the city, while a 5-speed Shimano Nexus hub and a Gates carbon belt keep shifting simple and maintenance close to zero. The PowerPack 545 battery is good for up to 67 miles, and the compact Purion 200 display keeps the cockpit uncluttered. You still get the full HSD package: 419 lb of hauling capacity, Magura hydraulic brakes, a Suntour suspension fork, integrated lights, and a 5-second fold. Small bike, serious range, no fuss.


This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

  • Bosch Performance Line motor delivers 75 Nm of torque and up to 340% pedal assist
  • Bosch Smart System adds eBike Lock, ride customization, and over-the-air updates through the eBike Flow app
  • Compact Bosch Purion 200 display keeps the cockpit clean with every feature a thumb away
  • Bosch PowerPack 545 battery delivers up to 67 mi of range on a single charge
  • Shimano Nexus 5 internally geared hub with twist shifter, paired with a silent, maintenance-free Gates Carbon Drive belt
  • Magura hydraulic disc brakes with 180 mm rotors for confident stopping under load
  • Hauls up to 419 lb gross vehicle weight, with a 176 lb rear rack capacity
  • Folds in 5 seconds and adjusts without tools to fit riders 4'11" - 6'7"
  • Certified to UL 2849 and EN 17860 for proven cargo e-bike safety"
  • GEARS: 5
  • GEAR TYPE: Hub (Shimano Nexus 5, 263% range)
  • WEIGHT: 61.9 lb
  • FRAME SIZES: One size
  • SUGGESTED RIDER HEIGHT: 4'11" - 6'7"
  • MAX GROSS VEHICLE WEIGHT: 419 lb
  • MAX RIDER WEIGHT: 287 lb
  • FRAME: Tern HSD, 6061 aluminum, patented design, EN 17860 certified
  • FORK: Suntour custom for Tern, 32 mm stanchions, thru-axle
  • SEATPOST: Tern VLT
  • SADDLE: Tern by Velo
  • BRAKES: Magura, hydraulic disc, 180 mm rotors
  • SHIFTER(S): Shimano Nexus 5, twist
  • CHAIN: Gates Carbon Drive CDX belt
  • MOTOR: Bosch Performance Line, 340% assist, 75 Nm
  • MAX SPEED: 20 mph
  • E-BIKE CLASSIFICATION: Class 1
  • BATTERY: Bosch PowerPack 545
  • DISPLAY: Bosch Purion 200
  • RANGE: 35-67 mi
  • BELL: Yes, Pitch Plus brass
  • KICKSTAND: Yes, Ursus rear mount
  • FRONT LIGHT: Yes, Tern Valo Direct, 190 lumens
  • REAR LIGHT: Yes, Herrmans LED
  • FENDERS: Yes, aluminum with stainless hardware
  • RACK(S): Atlas H rack, 6-point mounting, max load 176 lb
  • FRAME LOCK: Yes, AXA
  • SECURITY: Keyed-alike with Bosch battery
  • FOLDED SIZE: 65.4 x 16.5 x 34.3 in
  • FOLDING TIME: 5 seconds

Note: These are standard model specifications. We do our best to ensure accuracy, but components and specs are subject to change.

Tern provides a 5-year limited warranty to the original owner of the bike.
